您當前的位置： 首頁 » 產品＆解決方案 » DLD2-4,DLD2-10,DLD2-20,DLD2-40,DLD2-80,DLD2-160,DLD2-250,單片電磁離合器 DLD2-4,DLD2-10,DLD2-20,DLD2-40,DLD2-80,DLD2-160,DLD2-250,單片電磁離合器
 點擊圖片查看原圖 |
|
| 產品： |
瀏覽次數：1370DLD2-4,DLD2-10,DLD2-20,DLD2-40,DLD2-80,DLD2-160,DLD2-250,單片電磁離合器 |
| 型號： |
DLD2-4,DLD2-10,DLD2-20,DLD2-40,DLD2-80,DLD2-160,DLD2-250, |
| 單價： |
面議 |
| 最小起訂量： |
|
| 供貨總量： |
|
| 發貨期限： |
自買家付款之日起 3 天內發貨 |
| 有效期至： |
長期有效 |
| 最后更新： |
2014-03-31 14:10 |
| |
詢價 |
|
DLD2-4,DLD2-10,DLD2-20,DLD2-40,DLD2-80,DLD2-160,DLD2-250,單片電磁離合器
| 性能參數規格型號 |
DLD2-4 |
DLD2-10 |
DLD2-20 |
DLD2-40 |
DLD2-50 |
DLD2-80 |
DLD2-160 |
DLD2-250 |
| 磨擦參數(N.m) |
靜 |
4.4 |
11 |
22 |
45 |
55 |
90 |
175 |
275 |
| 動 |
4 |
10 |
20 |
40 |
50 |
80 |
160 |
250 |
| 激磁電壓u(DCV) |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
24 |
| 線圈消耗功率20℃(W) |
11 |
15 |
20 |
25 |
32 |
35 |
45 |
55 |
| 允許最高轉速(R/Min) |
8000 |
6000 |
5000 |
4000 |
3000 |
3000 |
2000 |
2000 |

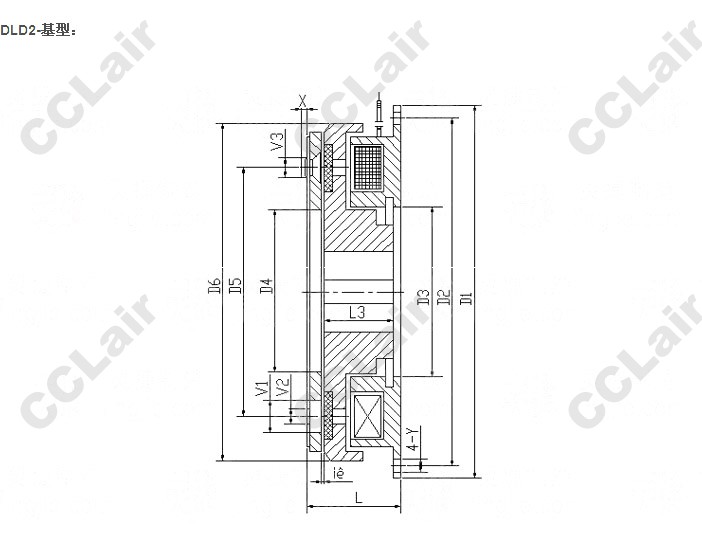

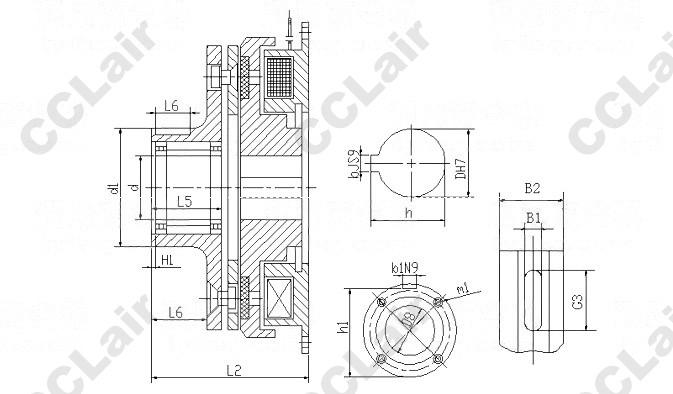

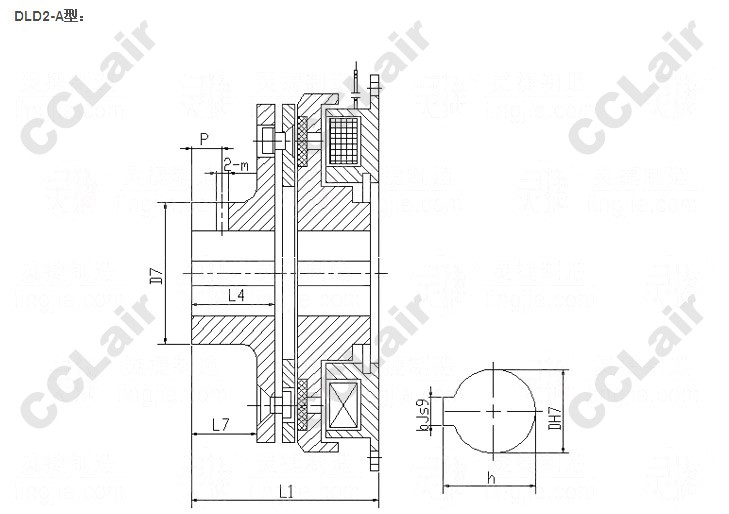

| 尺寸參數規格型號 |
DLD2-4 |
DLD2-10 |
DLD2-20 |
DLD2-40 |
DLD2-50 |
DLD2-80 |
DLD2-160 |
DLD3-250 |
| D1 |
80 |
100 |
125 |
150 |
158 |
190 |
230 |
280 |
| D2 |
72 |
90 |
112 |
137 |
147.5 |
175 |
215 |
260 |
| D3 |
35 |
42 |
52 |
62 |
62 |
80 |
100 |
120 |
| D4 |
34 |
41 |
51 |
61 |
61 |
79.5 |
100 |
120 |
| D5 |
46 |
60 |
76 |
95 |
101 |
120 |
158 |
185.5 |
| D6 |
67 |
85 |
105 |
133 |
145 |
169 |
213 |
253 |
| D7 |
26 |
31 |
41 |
49 |
65 |
65 |
83 |
100 |
| D |
15 |
15 |
20 |
25 |
25 |
30 |
45 |
55 |
| h |
17.3 |
17.3 |
22.8 |
28.3 |
43.3 |
33.3 |
48.8 |
59.3 |
| b |
5 |
5 |
6 |
8 |
8 |
8 |
14 |
16 |
| d |
15 |
15 |
20 |
25 |
25 |
30 |
45 |
55 |
| d1 |
38 |
45 |
55 |
64 |
64 |
75 |
100 |
110 |
| h1 |
35 |
42 |
51.5 |
60 |
60 |
71 |
94.5 |
104 |
| b1 |
5 |
5 |
6 |
8 |
8 |
8 |
14 |
16 |
| L |
28 |
31 |
36 |
40.5 |
45 |
46.5 |
55.5 |
62.5 |
| L1 |
43.5 |
51 |
61 |
70.5 |
75 |
84.5 |
97.5 |
112.5 |
| L2 |
51.5 |
60 |
71 |
86.5 |
93 |
103.5 |
124.5 |
139.5 |
| L3 |
22 |
24 |
27 |
30 |
32 |
34 |
40 |
45 |
| L4 |
15 |
20 |
25 |
30 |
30 |
38 |
42 |
50 |
| L5 |
23.5 |
29 |
35 |
46 |
48 |
57 |
69 |
77 |
| L6 |
14 |
15 |
20 |
30 |
30 |
35 |
45 |
50 |
| L7 |
12 |
16 |
20 |
24 |
29 |
31 |
33 |
38 |
| L8 |
20 |
25 |
30 |
40 |
40 |
50 |
60 |
65 |
| H |
3.5 |
4.3 |
5 |
5.5 |
5.5 |
6 |
7 |
8 |
| H1 |
2 |
2 |
3 |
3 |
3 |
3 |
4 |
6 |
| B |
1.7 |
1.7 |
2.2 |
2.2 |
2.2 |
2.7 |
2.7 |
3.2 |
| P |
6 |
8 |
10 |
12 |
12 |
15 |
16 |
18 |
| m |
M4 |
M5 |
M5 |
M6 |
M6 |
M8 |
M8 |
M10 |
| m1 |
3-M4深6 |
4-M4深6 |
4-M4深8 |
4-M4深8 |
6-M5深10 |
6-M5深10 |
6-M6深12 |
6-M6深12 |
| V1 |
3-φ6.3 |
3-φ8 |
3-φ10.5 |
3-φ12 |
3-φ12 |
3-φ15 |
3-φ20 |
3-φ20 |
| V2 |
3-φ3.1 |
3-φ4.1 |
3-φ5.1 |
3-φ6.1 |
3-φ6.1 |
3-φ8.1 |
3-φ10.2 |
3-φ10.2 |
| V3 |
3-φ6 |
3-φ7.5 |
3-φ9 |
3-φ11 |
3-φ11 |
3-φ14 |
3-φ18.5 |
3-φ18.5 |
| X |
1.5 |
2.8 |
3.8 |
5 |
5 |
6 |
8 |
8 |
| Y |
5 |
6 |
7 |
7 |
7 |
9.5 |
9.5 |
11 |
| δ |
0.2 |
0.2 |
0.3 |
0.3 |
0.5 |
0.3 |
0.5 |
0.5 |
|
